Introduction

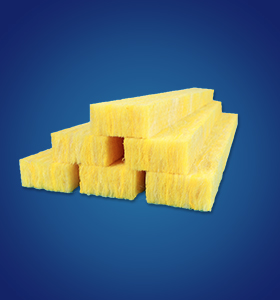

Insulation glass wool pipe is made by adopting unique centrifugal technology and adding environmental adhesives of thermosetting resins-based into molten glass fibrosis. It is a kind of elastic glass fiber product made of glass fiber with diameter of only a few microns, and we can also choose moisture-proof facing on-line compound according to customers’ requirements. It can work well in the environmental temperature range from -4–454 at exposure or close status.
- Good performance of thermal insulation, mechanical, fire prevention.
- High acidity has better chemical stability and fiber durability.
- Low cost and high temperature resistance.
- Good characteristics of sound absorption.
Specification
Density: 12-48 kg/m³
Raw materials: Melten glass
Diamete: 15-1200 mm
Asbestos: 100% Non Asbestos
Function: Thermal insulation, Sound absorption
Application
It is widely used in varies of high-temperature pipe, tank and equipment insulation of the domain of oil, chemical, metal and so on. Also can be used in thermal insulation of boats and the insulation and sound absorption of the buildings wall and ceiling.
Technical Data
| Item | Unit | Specification |
| Average diameter of fiber | um | ≤8 |
| Weight | kg/m³ | 12-48 |
| Thermal conductivity | w/m.k | 0.030-0.044 |
| Inflammable property | Non-inflammable | |
| Hydrophobic coefficient | % | ≥98 |
| Service temperature | °C | -120-400 |
| Slag ball | % | ≤0.3 |
| Organism | % | ≤4 |
| Water | % | ≤1.0 |
| Water absorption coefficient | % | ≤1.5 |
